L type single girder gantry crane

Capacity:5-50t
Span:18-35m
Lifting height:12m
Ambient Temperature:-25~40℃

Leave Message Quick Quote

L type Single Beam Gantry Crane applies to carry out general handling and lifting work for open yard and railway etc. Widely used in mine industry, production workshop, station of freight yard, port and pier etc.

It is mainly composed of bridge girder, Trolley, operation mechanism, Crab, electrical equipment etc.

The windward area of crane beam is small, lightweight, less wheel pressure, high security, lifting capacity is 5-50t.

"L" shaped legs design, it is not only beautiful in appearance, light in structure, but also convenient for internal and external transportation of large materials, and has good practicability. Less investment, compact structure, easy installation, convenient maintenance, strong ability.

The lifting mechanism have TWO MODEL, L Type hoist gantry crane and L Type Strong crab trolley gantry crane .

More Details Pictures:

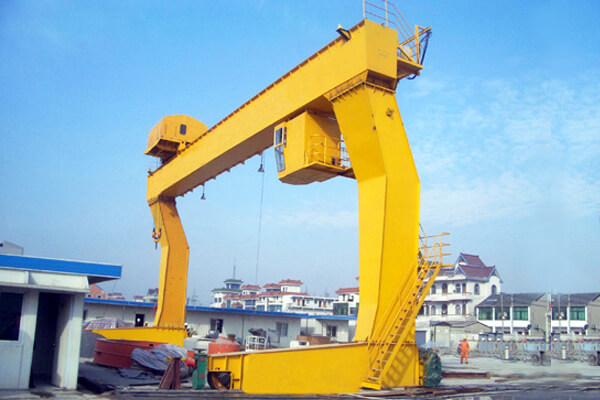

L TYPE SINGLE BEAM GANTRY CRANE

Capacity	T	5
Span	m	18	22	26	30	35
Lifting height	m	10/11
Lifting speed	m/min	9.2
Trolley travelling speed	m/min	36.6
Crane travelling speed	m/min	46.25		40.1
Max. Wheel load	KN	160	166	185	213	233
Rail recommended	Model	43kg/m
Total motor power	kw	27.8		36.8
Main dimension (mm)	Span(m)	18	22	26	30	35
Rail top to crane top	H	12590			13590
Rail top to hook center	H4	10			11
Crane base distance	W	6500		7000
Crane width	B	8000		8650
Trolley rail distance	K	899		999	1149	1249
Hook left limitation	S1	6700			8700
Hook right limitation	S2	7000			9400

Capacity	T	10
Span	m	18	22	26	30	35
Lifting height	m	10/11
Lifting speed	m/min	8.5
Trolley travelling speed	m/min	39.7
Crane travelling speed	m/min	39.6		40.1
Max. Wheel load	KN	177	182	189	215	222
Rail recommended	Model	43kg/m
Total motor power	kw	38		47
Main dimension (mm)	Span(m)	18	22	26	30	35
Rail top to crane top	H	13600			14600
Rail top to hook center	H4	10			11
Crane base distance	W	8730		9230
Crane width	B	7000		7500
Trolley rail distance	K	1050	1150		1350
Hook left limitation	S1	7000		9000
Hook right limitation	S2	7000		9300

Capacity	T	16
Span	m	18	22		26	30			35
Lifting height	m	10/11
Lifting speed	m/min	7.9/11.2
Trolley travelling speed	m/min	39.5
Crane travelling speed	m/min	40.1				47.1
Max. Wheel load	KN	298	306		307	370			383
Rail recommended	Model	43kg/m
Total motor power	kw	64.6				75.6
Main dimension (mm)	Span(m)	18	22		26	30			35
Rail top to crane top	H	13850				14850
Rail top to hook center	H4	10				11
Crane base distance	W	7000		7500			7500
Crane width	B	8750		9250			9500
Trolley rail distance	K	1150	1250			1350		1450
Hook left limitation	S1	7200				9200
Hook right limitation	S2	7800				10500

Capacity	T	20
Span	m	18	22	26	30	35
Lifting height	m	10/11
Lifting speed	m/min	7.1/9.2
Trolley travelling speed	m/min	39.3
Crane travelling speed	m/min	40.1		47.1
Max. Wheel load	KN	340	346	362	419	432
Rail recommended	Model	43kg/m
Total motor power	kw	67.3		78.3
Main dimension (mm)	Span(m)	18	22	26	30	35
Rail top to crane top	H	13860			14860
Rail top to hook center	H4	10			11
Crane base distance	W	7500		8000
Crane width	B	9250		10000
Trolley rail distance	K	1250	1350		1550
Hook left limitation	S1	7200			9200
Hook right limitation	S2	7900			10400

Capacity	T	32
Span	m	18	22	26	30	35
Lifting height	m	10.85/11.85
Lifting speed	m/min	6.3/9.2
Trolley travelling speed	m/min	38.6
Crane travelling speed	m/min	48.2	38.6
Max. Wheel load	KN	457	470	250	265	285
Rail recommended	Model	QU80
Total motor power	kw	85.5		93.5
Main dimension (mm)	Span(m)	18	22	26	30	35
Rail top to crane top	H	14380		14380	15180
Rail top to hook center	H4	10			11
Crane base distance	W	8000		8500
Crane width	B	10006		11452
Hook left limitation	S1	8000				10000
Hook right limitation	S2	8000				10000

Capacity	T	50
Span	m	18	22	26	30	35
Lifting height	m	10/12
Lifting speed	m/min	5.9/8.5
Trolley travelling speed	m/min	38.5
Crane travelling speed	m/min	39.7
Max. Wheel load	KN	350	355	359	363	378
Rail recommended	Model	QU80
Total motor power	kw	141
Main dimension (mm)	Span(m)	18	22	26	30	35
Rail top to crane top	H	14750			16750
Rail top to hook center	H4	10			12
Crane base distance	W	8500			9000
Crane width	B	12060			12560
Hook left limitation	S1	8000			10000
Hook right limitation	S2	8000			10000
