Casting Overhead Crane

Capacity:10t~500t
Span:10.5-31.5m
Lifting height:Max32m
Working Class:A5~A7

Leave Message Quick Quote

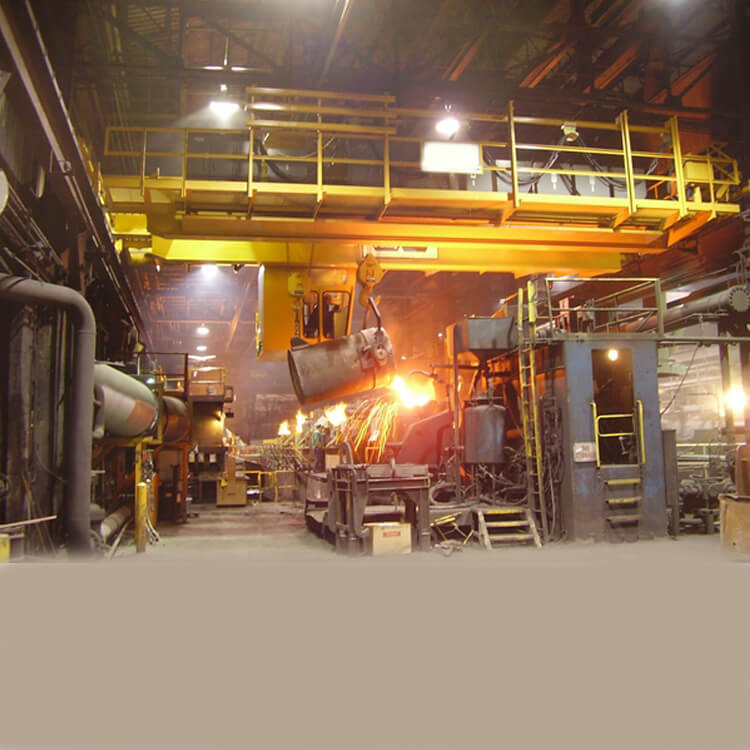

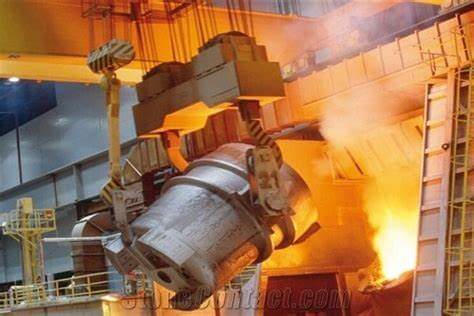

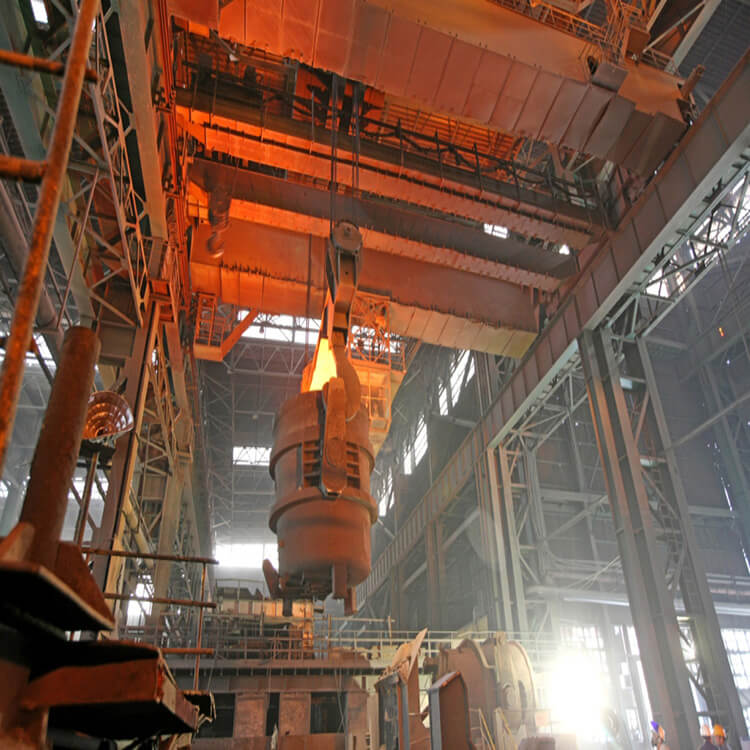

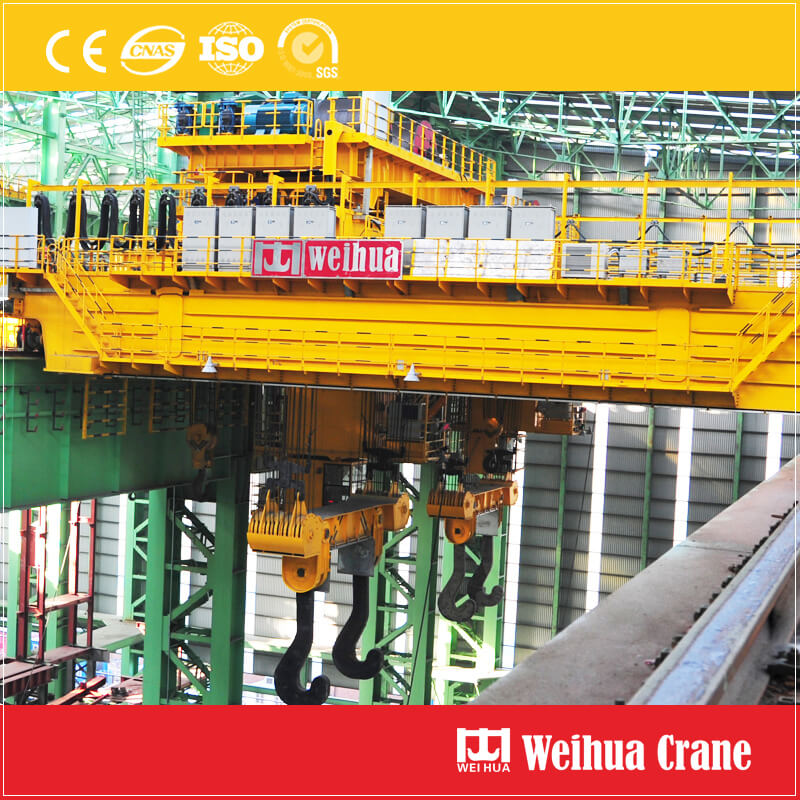

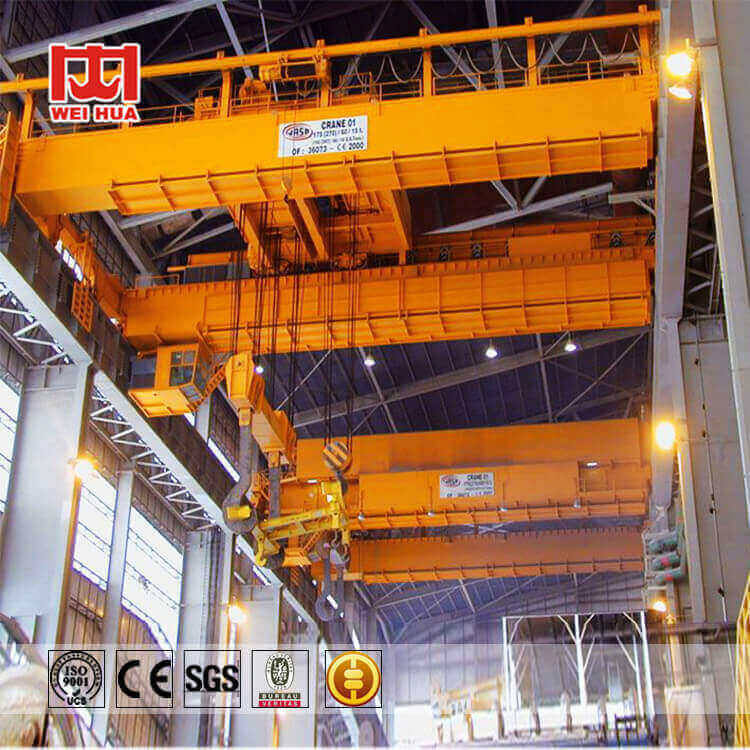

Casting crane is the main equipment of steel making and continuous casting process. Mainly used for lifting and transportation of liquid steel ladle.

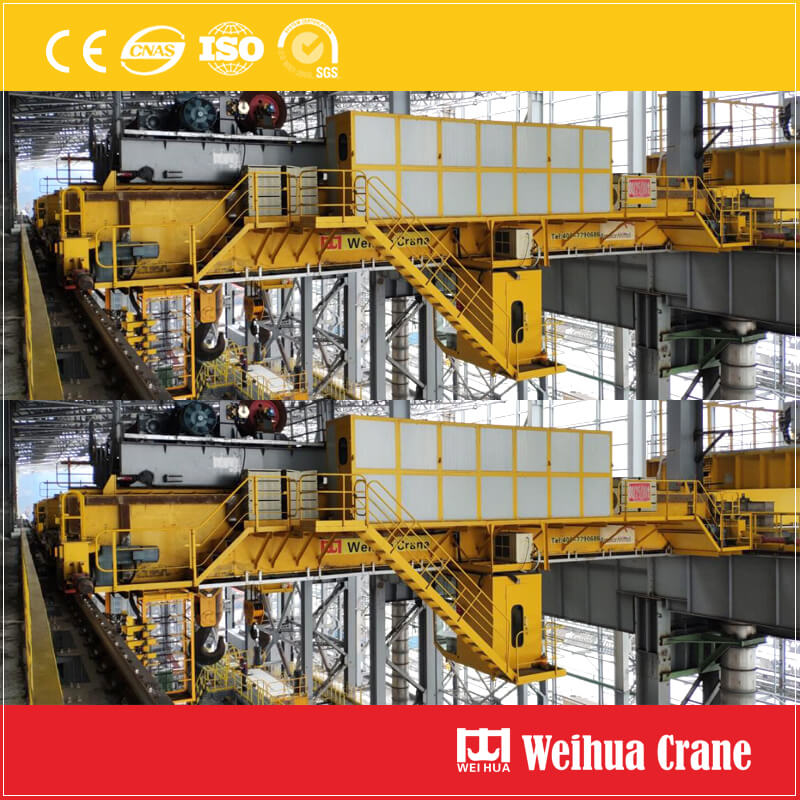

Overall structure can be divided into: double girder double-track, four beams and four-track, four-beam rail and other types. The first two are generally used for large tonnage crane, and the third is generally used for large tonnage of foundry crane.

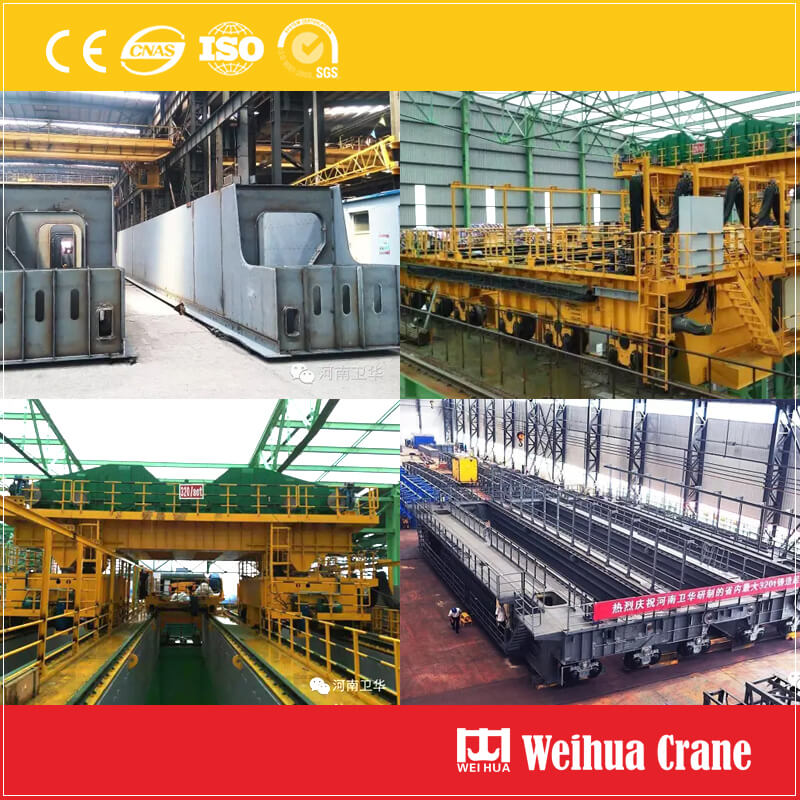

Casting crane company design and manufacture of advanced technology, novel structure, safe, reliable, economical and durable, and easy maintenance.

In addition, our casting crane offers the following features to be selected:

1.Rotary spreader,

2.The gantry hook from the variable.

3. Load weighing and display.

Capacity	T	5
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16
Lifting speed	m/min	12.5
Trolley travelling speed	m/min	39.5
Crane travelling speed	m/min	118.6					119.3
Total weight	kg	14000	15540	17400	20500	22800	27620	30200	33700
Max. Wheel load	KN	80	87	92	101	107	123	134	143
Rail recommended	Model	43kg/m
Total motor power	kw	27.1					32.5
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	1763
Rail top to hook center	H4	71
Crane base distance	W	3400			3550		5000
Crane width	B	5058			5208		6028
Trolley rail distance	K	1400
Hook left limitation	S1	1600
Hook right limitation	S2	1250

Capacity	T	10
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	18
Lifting speed	m/min	13
Trolley travelling speed	m/min	44.9
Crane travelling speed	m/min	118.6			119.3		114.9
Total weight	kg	16200	18500	21000	22600	25200	29500	32810	36670
Max. Wheel load	KN	112	120	129	138	145	160	171	181
Rail recommended	Model	43kg/m
Total motor power	kw	40.8					46.2
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	1876				1926
Rail top to hook center	H4	602				552
Crane base distance	W	4050				5000
Crane width	B	5708			5848		6388
Trolley rail distance	K	2000
Hook left limitation	S1	1600
Hook right limitation	S2	1300

Capacity	T	16/3.2
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16/18
Lifting speed	m/min	10.7/14.6
Trolley travelling speed	m/min	44.6
Crane travelling speed	m/min	114.9			103.5
Total weight	kg	21500	23600	26000	30500	32600	37050	40700	44020
Max. Wheel load	KN	156	162	169	186	195	207	218	230
Rail recommended	Model	43kg/m or QU70
Total motor power	kw	61.2					69.2
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	2095	2097		2187	2185
Rail top to hook center	H4	729	727		637	639
Crane base distance	W	4400				5000
Crane width	B	6278			6188		6798
Trolley rail distance	K	2000
Hook left limitation	S1	1930
Hook right limitation	S2	1530

Capacity	T	20/5
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	12/14
Lifting speed	m/min	9.9/12.3
Trolley travelling speed	m/min	45.9
Crane travelling speed	m/min	114.9			103.5
Total weight	kg	22800	25100	27490	31920	35400	39300	42970	46850
Max. Wheel load	KN	181	188	196	209	218	231	242	253
Rail recommended	Model	43kg/m or QU70
Total motor power	kw	73.5			81.5
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	2097	2099		2189
Rail top to hook center	H4	701	699		609
Crane base distance	W	4400					5000
Crane width	B	6278			6188		6798
Trolley rail distance	K	2000
Hook left limitation	S1	1980
Hook right limitation	S2	1530

Capacity	T	32/5
Span	m	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16/18
Lifting speed	m/min	9.7/12.3
Trolley travelling speed	m/min	43.5
Crane travelling speed	m/min	103.5		103.9		88
Total weight	kg	32900	36100	41200	45600	50020	53200	58200
Max. Wheel load	KN	257	274	294	309	327	341	356
Rail recommended	Model	QU70or square steel 90
Total motor power	kw	107.5
Main dimension (mm)	Span(m)	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	2341		2471
Rail top to hook center	H4	701		571
Crane base distance	W	4650		4700		5000
Crane width	B	6588			6608		6828
Trolley rail distance	K	2500
Hook left limitation	S1/S2	2050/1070
Hook right limitation	S3/S4	1700/2680

Capacity	T	50/10
Span	m	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	12/16
Lifting speed	m/min	7.6/10.5
Trolley travelling speed	m/min	39.3
Crane travelling speed	m/min	77.5		78
Total weight	kg	42700	47900	51700	54820	62300	66700	73800
Max. Wheel load	KN	399	415	438	457	479	496	518
Rail recommended	Model	QU80or square steel 100
Total motor power	kw	107.5
Main dimension (mm)	Span(m)	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	2750	2754
Rail top to hook center	H4	1018	1012
Crane base distance	W	4800				5000
Crane width	B	6828			6858		7058
Trolley rail distance	K	2500
Hook left limitation	S1/S2	2200/1005
Hook right limitation	S3/S4	2000/3195

Capacity	T	74/20
Span	m	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	20/22
Lifting speed	m/min	6.4/9.7
Trolley travelling speed	m/min	37.2
Crane travelling speed	m/min	67.4			77
Total weight	kg	73550	78930	51700	84800	89960	97110	108000
Max. Wheel load	KN	272	288	300	314	325	334	345
Rail recommended	Model	QU80or square steel 100
Total motor power	kw	200			214
Main dimension (mm)	Span(m)	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	3521	3523	3525	3531	3531	3531	3533
Rail top to hook center	H4	1866	1864	1862	1856	1856	1856	1854
Crane width	B	8728
Trolley rail distance	K	4400
Hook left limitation	S1/S2	2450/1015
Hook right limitation	S3/S4	2200/3635

Capacity	T	100/32
Span	m	19.5	22.5	25.5	28.5
Lifting height	m	20/22
Lifting speed	m/min	7.5/10.5
Trolley travelling speed	m/min	38
Crane travelling speed	m/min	77
Max. Wheel load	KN	486	516	540	560
Rail recommended	Model	QU120
Total motor power	kw	391
Main dimension (mm)	Span(m)	19.5	22.5	25.5	28.5
Rail top to crane top	H	4900
Rail top to hook center	H4	3997
Crane width	B	14500
Trolley rail distance	K	9200
Hook left limitation	S1	1600
Hook right limitation	S2	2200

Capacity	T	125/32
Span	m	19.5	22.5	25.5
Lifting height	m	20/22
Lifting speed	m/min	7.5/10.5
Trolley travelling speed	m/min	38
Crane travelling speed	m/min	79.7
Max. Wheel load	KN	605	618	632
Rail recommended	Model	QU120
Total motor power	kw	475		479
Main dimension (mm)	Span(m)	19.5	22.5	25.5
Rail top to crane top	H	5150
Rail top to hook center	H4	4097
Crane width	B	14900
Trolley rail distance	K	9600
Hook left limitation	S1	1600
Hook right limitation	S2	2200

Capacity	T	140/40				160/40
Span	m	22	25	28	22		25	28
Lifting height	m	22/22
Lifting speed	m/min	6.84/9.1				0.6-6/9.5
Trolley travelling speed	m/min	38				37/38
Crane travelling speed	m/min	73				77.8
Max. Wheel load	KN	356	366	376	400		410	420
Rail recommended	Model	QU120
Total motor power	kw	510.5
Main dimension (mm)	Span(m)	22	25	28	22		25	28
Rail top to crane top	H	5600				5695
Rail top to hook center	H4	4200				4871
Crane width	B	17600				16932
Trolley rail distance	K	11600/2400				11340/2400
Hook left limitation	S1/S2	2400/1600				2400/1700
Hook right limitation	S3/S4	1850/1700				1800/1700

Capacity	T	180/50	200/50	225/65	240/75	280/75	320/80
Span	m	28.5	28	27	24	21	24.5
Lifting height	m	22/29	26/26	28/28	30/30	24/26	28/32
Lifting speed	m/min	7.2/9.3	8/9.3	8/10	10/10.5	10/10.5	9/10
Trolley travelling speed	m/min	38/40	40/40	40/38	38/40	36/39	36/39
Crane travelling speed	m/min	86	86	87	87	76	63
Max. Wheel load	KN	525	550	585	625	595	650
Rail recommended	Model	QU120
Main dimension (mm)	Span(m)	28.5	28	27	24	21	28
Rail top to crane top	H	6500	7200	7200	7500	7600	7800
Rail top to hook center	H4	5500	6200	6200	6200	5900	6000
Crane width	B	16800	17800	17800	17800	19200	19500
Trolley rail distance	K	10600/2600	10500/2600	10500/3500	10500/3500	12000/3800	12500/5000
Hook left limitation	S1/S2	2600/1600	2600/1600	3600/1800	3600/1800	3500/2000	3500/2000
Hook right limitation	S3/S4	2600/2350	2600/2400	3200/2400	3200/2500	3200/2500	3300/2500
